оƬ×é

H610

BIOS

AMI UEFI BIOS

ÏÔ¿¨

Intel CPU integrated Gen.12 Graphics Engines

ÄÚ´æ

2xDDR5 4800MHz SO-DIMM, up to 64GB

²Ù×÷ϵͳ

Windows10, Windows11,Linux, Ubuntu 21.04¼°ÒÔÉÏ

I/O ½Ó¿Ú

USB

4xUSB 3.0, 2xUSB 2.0

COM

2xRS485/232£¨ÓëCANһ·£¬£¬£¬£¬£¬¼¯³ÉÔÚ12Pin·ï»Ë¶Ë×ÓÉÏ£©

CAN×ÜÏß

1xCAN×ÜÏߣ¨ÓëCOMһ·£¬£¬£¬£¬£¬¼¯³ÉÔÚ12Pin·ï»Ë¶Ë×ÓÉÏ£©

LED

1xPWR,1xRUN,1xHDD,1xERR

À©´ó

M.2

1xM.2 Key B Socket (3042/3052) support 4G/5G

ÏÔʾ

Graphics Processor

Intel?UHD Graphics 730-770

Interface

1xDP£¬£¬£¬£¬£¬Up to 3840 x 2160 @60Hz

1xHDMI£¬£¬£¬£¬£¬Up to 4096 ¡Á2160 @60Hz

´æ´¢

Storage Device

1xM.2 Key M Socket (2242/2280,NVME)

ÒÔÌ«Íø

LAN

4x Intel GbE LAN ( 1xi219V, 2xi226V, 1xi210AT )

Interface

4xRJ45

µçÔ´

Power Input

24V, DC-in

Power Interface

2Pin·ï»Ë¶Ë×Ó

ÆäËü

Watchdog Timer

255¼¶¿É±à³ÌÃë/·Ö£¬£¬£¬£¬£¬Ö§³Ö³¬Ê±Öжϻòϵͳ¸´Î»

TPM

Ö§³ÖTPM2.0£¬£¬£¬£¬£¬°åÔؼÓÃÜоƬSLB9670

ÎïÀí²ÎÊý

Dimensions

230mm(L)¡Á165mm(W)¡Á71.5mm(H)

Weight

1.4 KG

Mounting

Desk/Wall-mounting, Din rail mounting

¹¤×÷»·¾³

Operating Temp.

-40¡æ~55¡æ

Storage Temp.

-40¡æ~85¡æ

Humidity

0~90% Humidity, non-condensing

Shock

ʹÓÃSSD£º15G, IEC 60068-2-27, half sine, 11ms duration

Vibration

ʹÓÃSSD£º2Grms, IEC 60068-2-64, random£¬£¬£¬£¬£¬5~500Hz£¬£¬£¬£¬£¬1 hr/axis

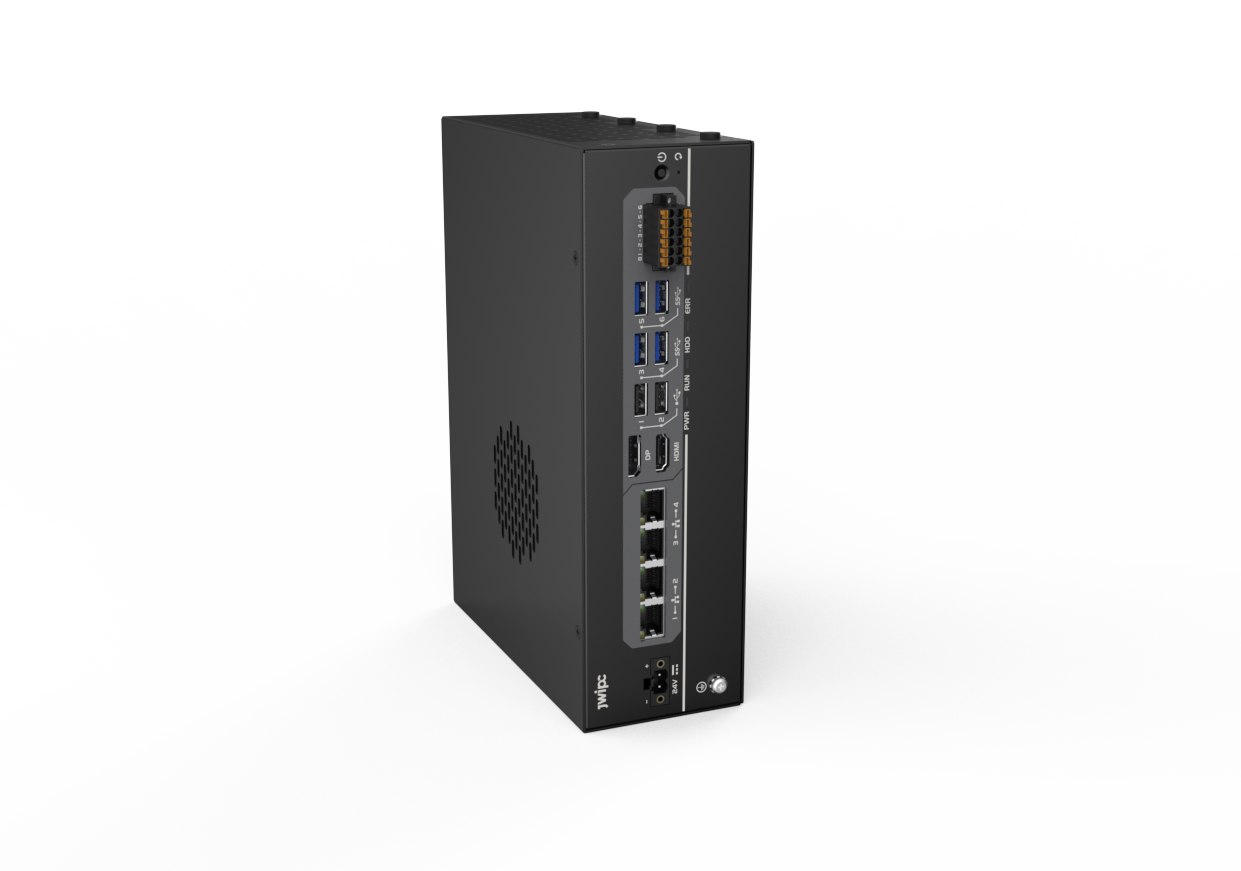

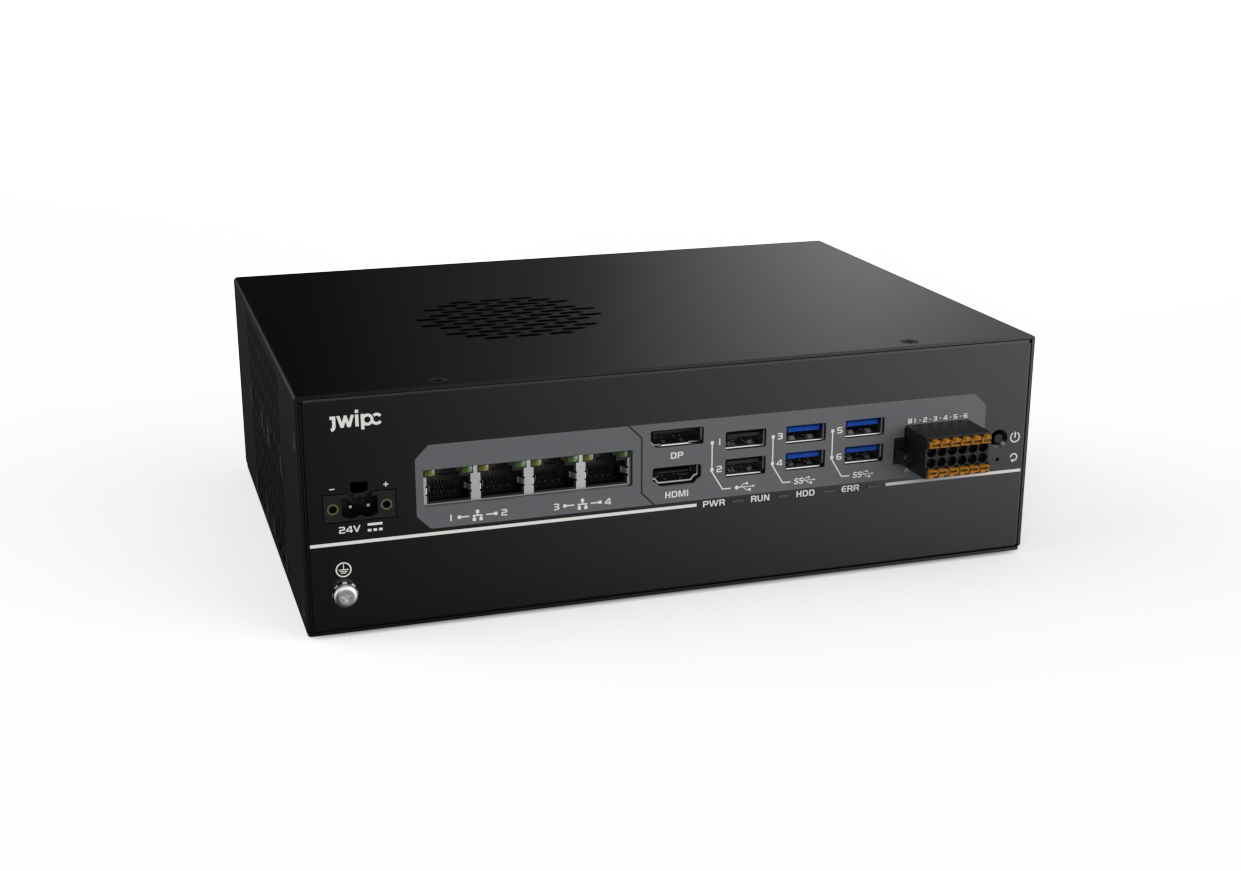

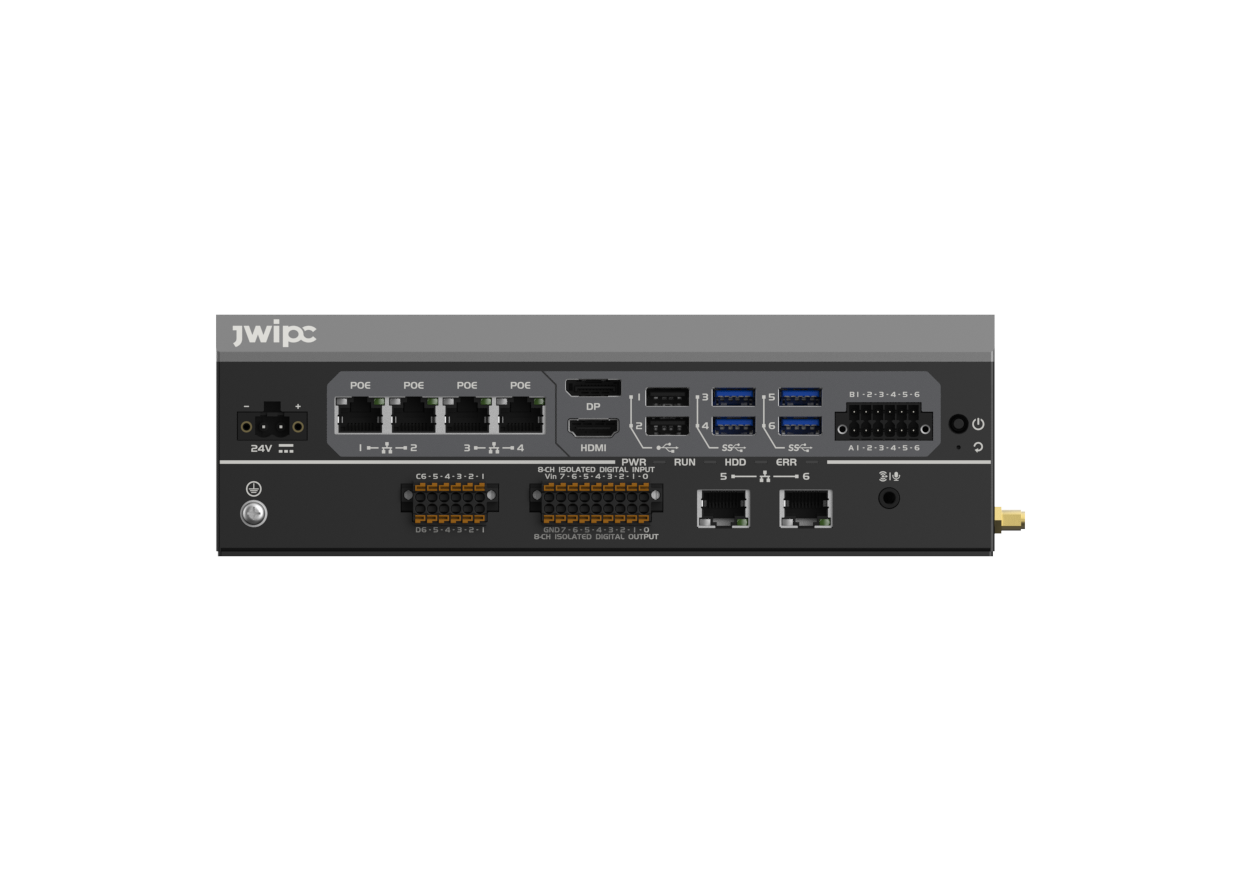

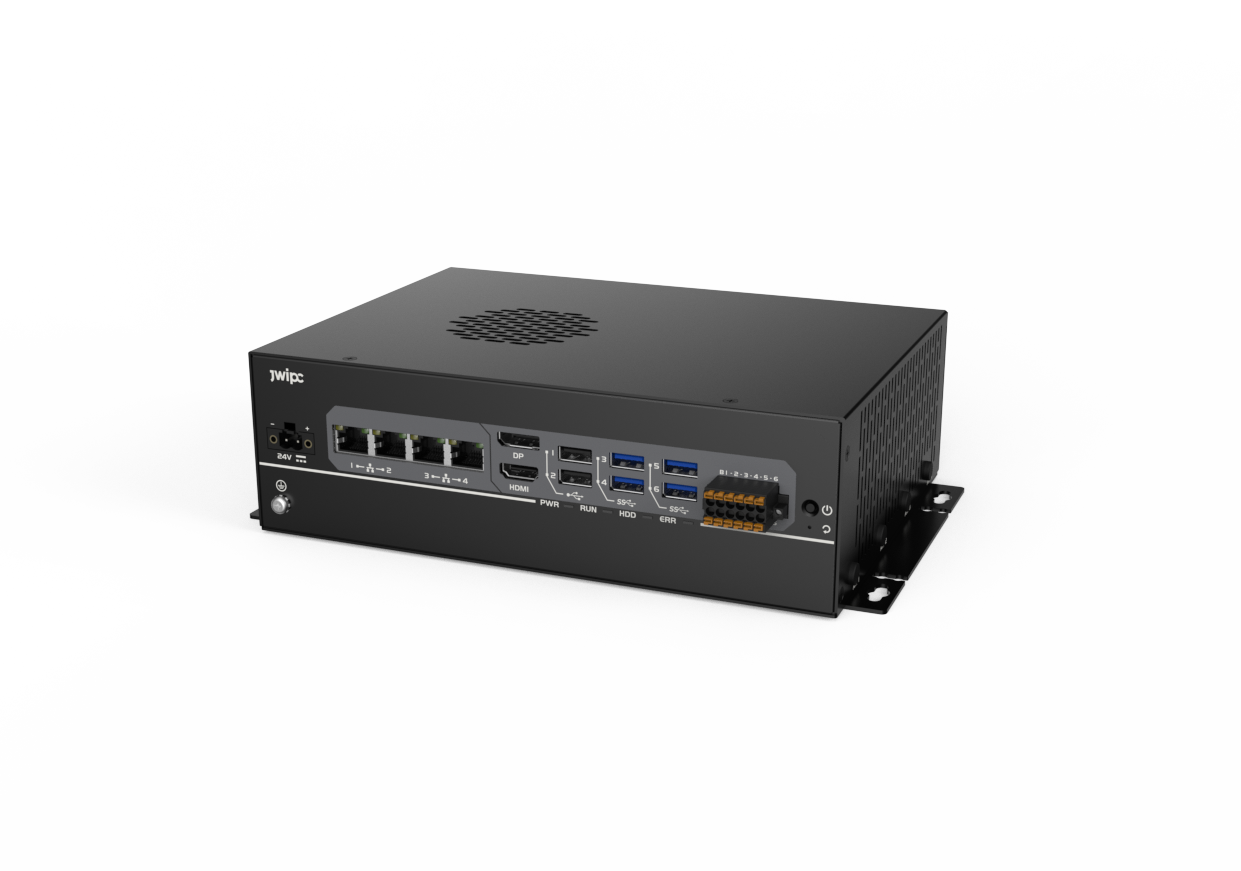

PAS-7510F

H610

2

2

4

4

2

2

1

PAS-7510F

PAS-7510F׼ϵͳ

1

300600013312

µçÔ´ÊÊÅäÆ÷,DA-180C24-AAAE,180W,AC100~240V,24V,7.5A,·ï»Ë¶Ë×Ó

1

301800000601

Flat Cable,Power,±í²¿µçÔ´Ïß-AC-1.83m-ÐþÉ«,3C-250V/10A,¹ú±êÈý²åXBH-G32-3X0.75mm2-Æ·×Öβ

1

302300018249

PAS-7000 ²à±Ú¹ÒÌõ

1

302300018251

PAS-7000 µ×²¿¹Ò¶ú

2

302300000937

DIN¿¨¿Û

1

301700006521

·ï»Ë¶Ë×Ó,2x6Pin

1

NA

ÂÝË¿°ü

1
